Product Overview

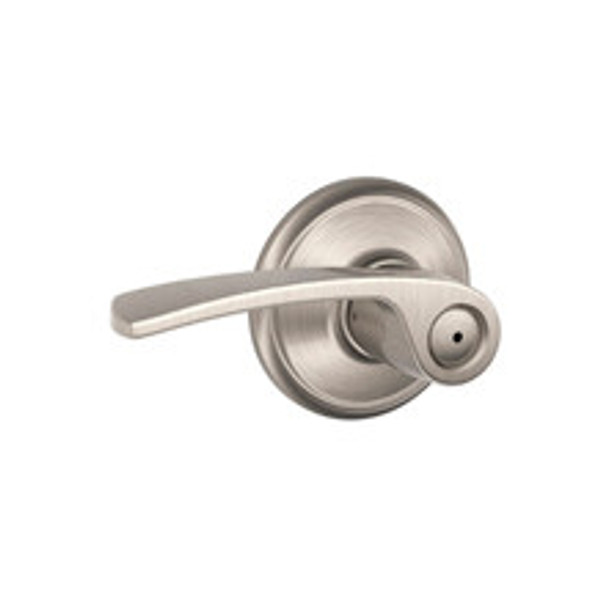

Schlage F40MER619x625 Satin Nickel/Polished Chrome Privacy Merano Style Lever
ADA Compliant: Yes
Applications: Residential single- and multi-family doors
Backset: Universal latch standard, fits either 2-3/8 in. (60mm) or 2-3/4 in. (70mm) backsets
Certifications:
Commercial Standard Certification: ANSI/BHMA A156.2-2011 Grade 2
Residential Standard Certification: ANSI/BHMA A156.39-2015 Grade AAA in Security, Durability and Finish
Door thickness range: 1-3/8 in. to 1-3/4 in. (35mm-44mm) standard
UL Listed: Locks for up to three-hour fire doors available
Warranty: Limited Lifetime Mechanical and Finish Warranty
Handing instructions.
Step 1. Stand outside of the door where the lever will be installed.
Step 2. Observe which side of the door the hinges are on.
If the hinges are on the left side of the door, specify a Left-Hand (LH) lever on your order. If the hinges are on the right side of the door, specify a Right-Hand (RH) lever.
