Product Overview

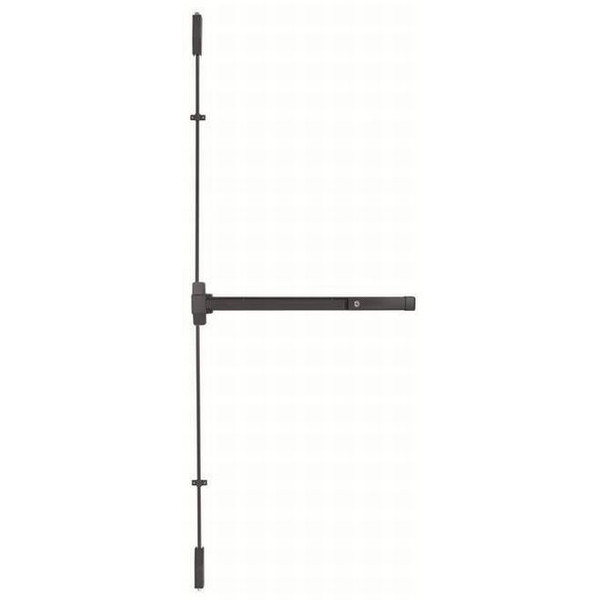

Dormakaba QED3144690 Statuary Bronze 4 ft. Standard Duty Architectural Surface Vertical Rod - Hex Dog Exit Device 7 Ft. Style
ANSI/BHMA A156.3 Series Grade 1 - UL/cUL listed (3-hours) for "A" label single door applications (4' x 8') - UL10C/UBC 7-2 (1997)
Positive Pressure Rated - UL10B Pressure Rated - UL305 for panic hardware
Tested to significantly exceed the 500,000 cycles required for Grade 1 certification.
Field sizeable. 36" device adjustable to 32".
Thru-bolted tt design for increased security and durability.
Handing - All QED300 series exit devices are non-handed.
Door Thickness - 1 3/4" standard.
Latchbolt - Stainless steel 3/4" throw with deadlatch. (Rim Only)
Strike - Stainless steel body with plated steel roller standard. Fire rated stainless steel strike with stainless steel roller standard on QED313. (Rim Only)
Door Height - 7' standard with 84" rods; 8' optional with 96" rods. (Surface Vertical Rod Only)
Latchbolt - 1/2" throw on top latch; 3/8" on bottom latch. (Surface Vertical Rod Only)
Fasteners - Wood and machine screws standard. Sex bolts optional. (Standard on fire rated device).
Head Cap & End Cap - Zinc die-cast.
Trims - Pinnacle and Pearce styles available.
Escutcheon Offering - Dummy, Passage, Keyed, Night Latch.
Pull Plate Offering - Dummy, Thumbpiece, Night Latch, Flat Plate.
Stile width - 3 7/8" (98mm).
Dogging - Hex key dogging and cylinder dogging available
