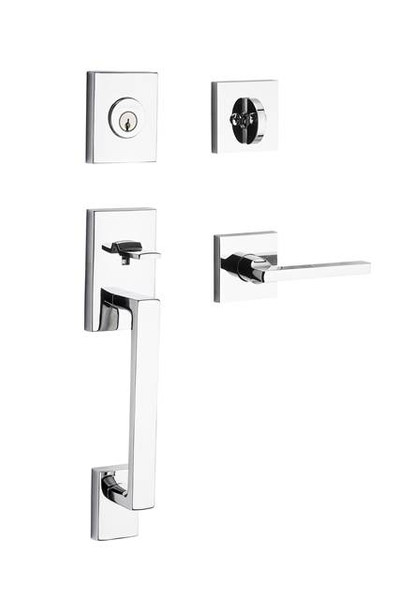

Baldwin Reserve SCLAJ260 Polished Chrome Single Cylinder La Jolla Handleset with Your Choice of Handle and Rosette

Baldwin Reserve SCLAJ260 Polished Chrome Single Cylinder La Jolla Handleset with Your Choice of Handle and Rosette

Certifications: Tested to Exceed ANSI/BHMA Grade 2 Security

Applications: Residential locks single and multi-family entrance doors

Door Prep: 2-1/8” door holes 5-1/2" Center to Center

Door Ranges: 1-3/4" to 2" thick

Backset: Universal fits 2-3/8" or 2-3/4" backsets.

Latches: 1" x 2-1/4" Square Corner, 7/8" Housing diameter, 1" Throw

Strikes: 1-1/8" x 2-3/4" Square Corner with Box

Cylinder: 5-Pin solid brass, keyed 5-pin, C keyway

Keys: Two nickel silver cut keys per lock, 5-Pin

Reinforcement: Door frame strike reinforcer with 3" screws.

Optional Smartkey Cylinder with KW1 keyway:

SmartKey™ is a technological innovation that provides superior security with the flexibility of re-keying your own lock quickly and easily without removing it from your door. SmartKey also offers BumpGuard™ for protection against lock bumping.

Handing instructions.

Step 1. Stand outside of the door where the Handleset will be installed.

Step 2. Observe which side of the door the hinges are on. If the hinges are on the left side of the door, specify a Left-Hand (LH) lever on your order. If the hinges are on the right side of the door, specify a Right-Hand (RH) lever.

See above inset picture.

See Below for Lever and Interior Rose Options
