Product Overview

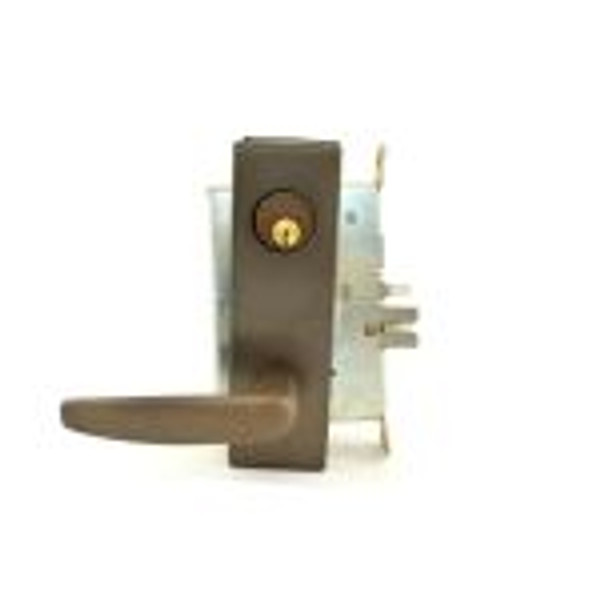

Schlage L9050P-613 Oil Rubbed Bronze Mortise Entrance/Office Lock with N Escutcheon and Your Choice of Handle
Certifications: ANSI/BHMA Certified A156.13-2005, Series 1000, Grade 1 Operational, Grade 1 Security, UL Listed for 3-hour fire door (Expect L9076 and L9077)
Case Size: 4-7/16" x 6-1/16" x 1"
Armor Front: 1-1/4" x 8"
Latchbolt: 3/4" Throw stainless steel with anti-friction tongue.
Strike: 1-1/4" x 4-7/8" Square corner, 1-3/16" lip, box
Backset: 2-3/4"
Door Range: 1-3/4"
Deadbolt: 1" throw stainless steel.
Cylinder: 6-Pin solid brass, keyed 6-pin
Keys: Two nickel silver cut keys per lock.
See Below for Handle Options
